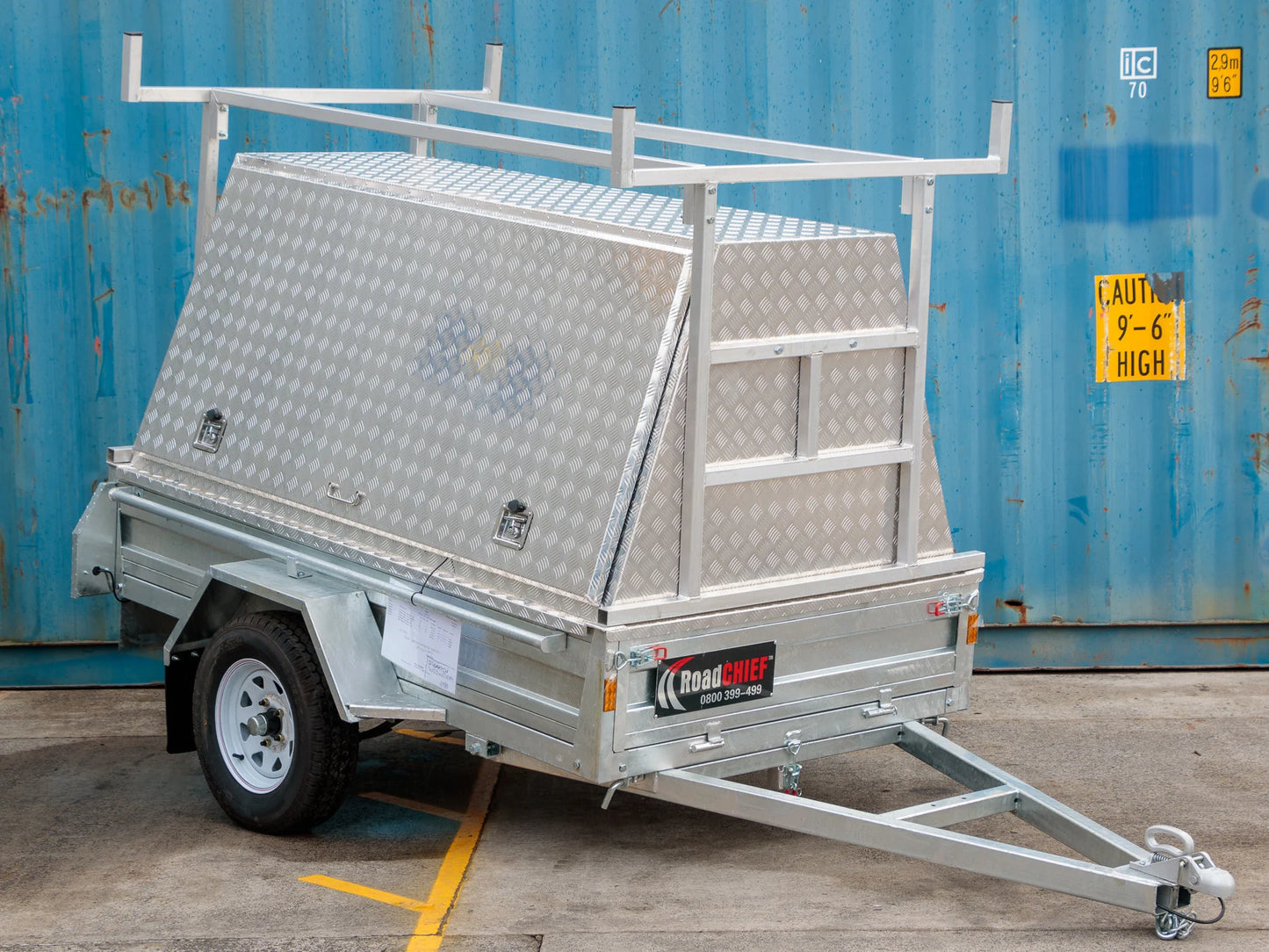

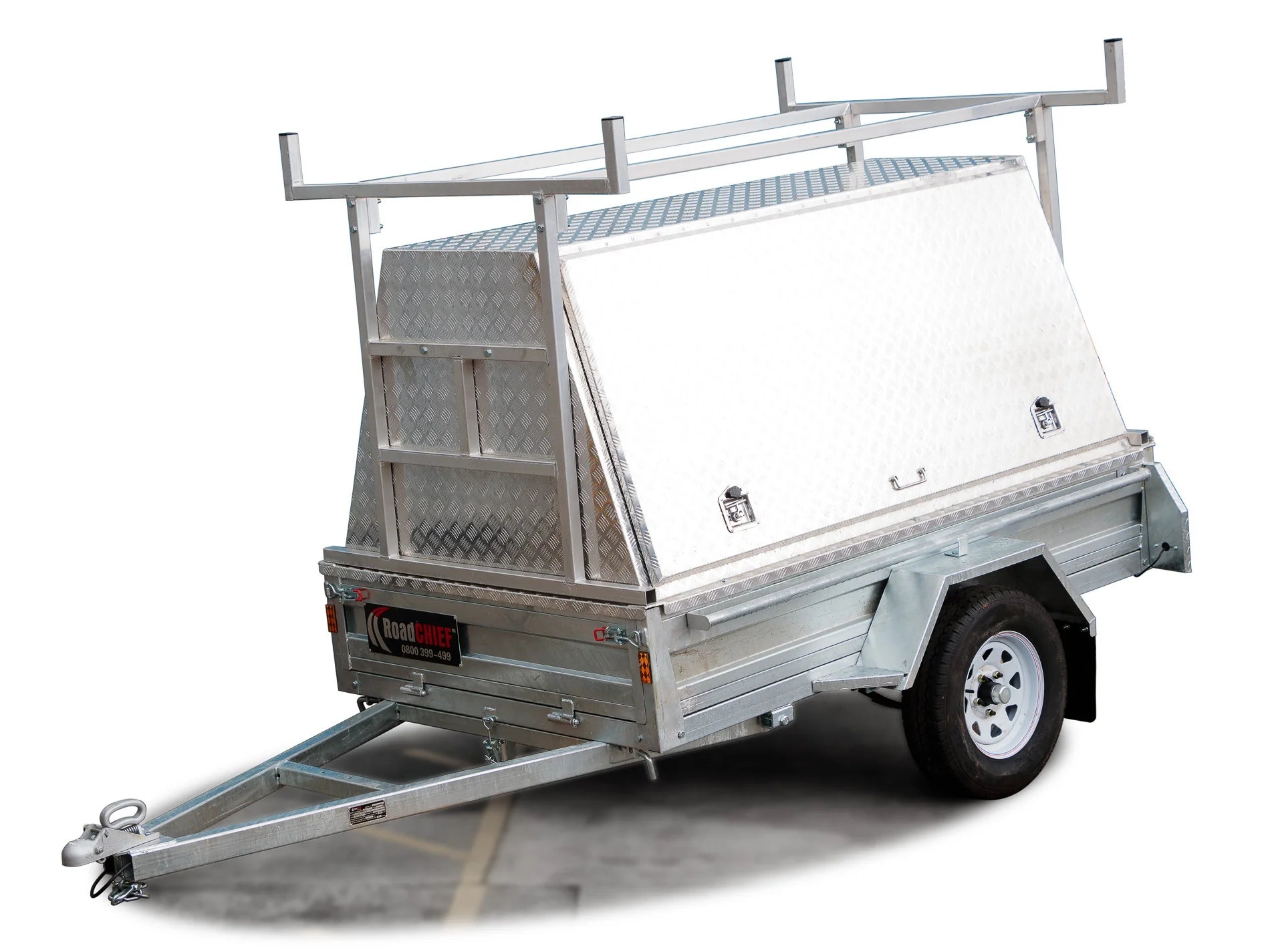

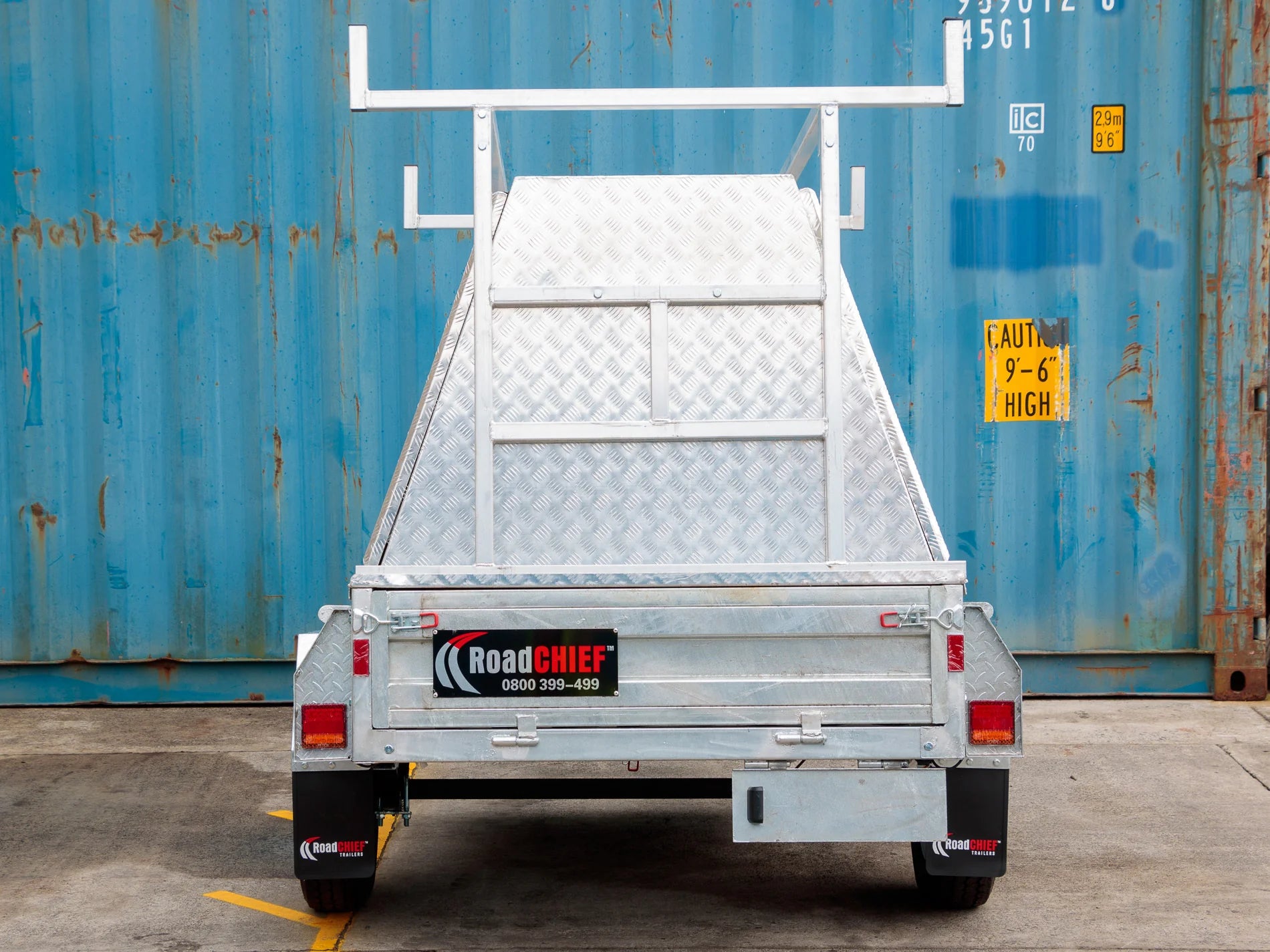

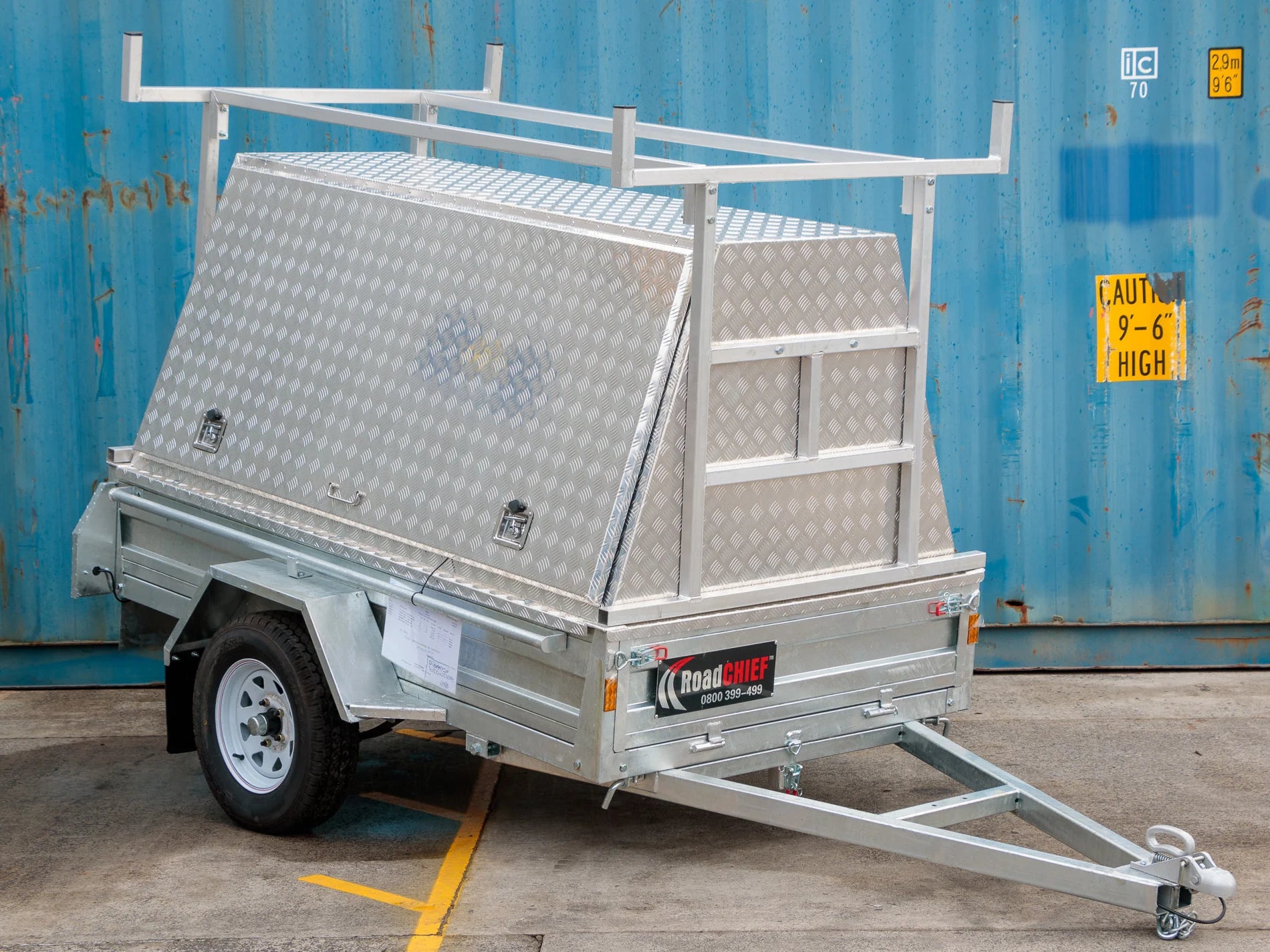

RoadCHIEF Trailer 8x5 Single Axle with Tradie Top/Canopy

TRAILER:
LOAD CAPACITY: 750kg
GTM: 1100kg


TRAILER FEATURES:
Tilting Tray
LED Lighting
Folding / Removable Rear Tailgate
NZ Style 1-7/8" Coupling and Safety Chain
Hot Dipped Galvanized Steel
2x 13" Rims with 165R13C Tyres
Galv Floor with 50mm x 30mm Box Section Supports spaced 400mm apart (centres)


CANOPY FEATURES:
Weatherproof with Rubber Door Trim
2mm Aluminium Checker Plate Body - Fully Welded
Front & Rear Storage Ladders / 'H' Frames (40mm box section)

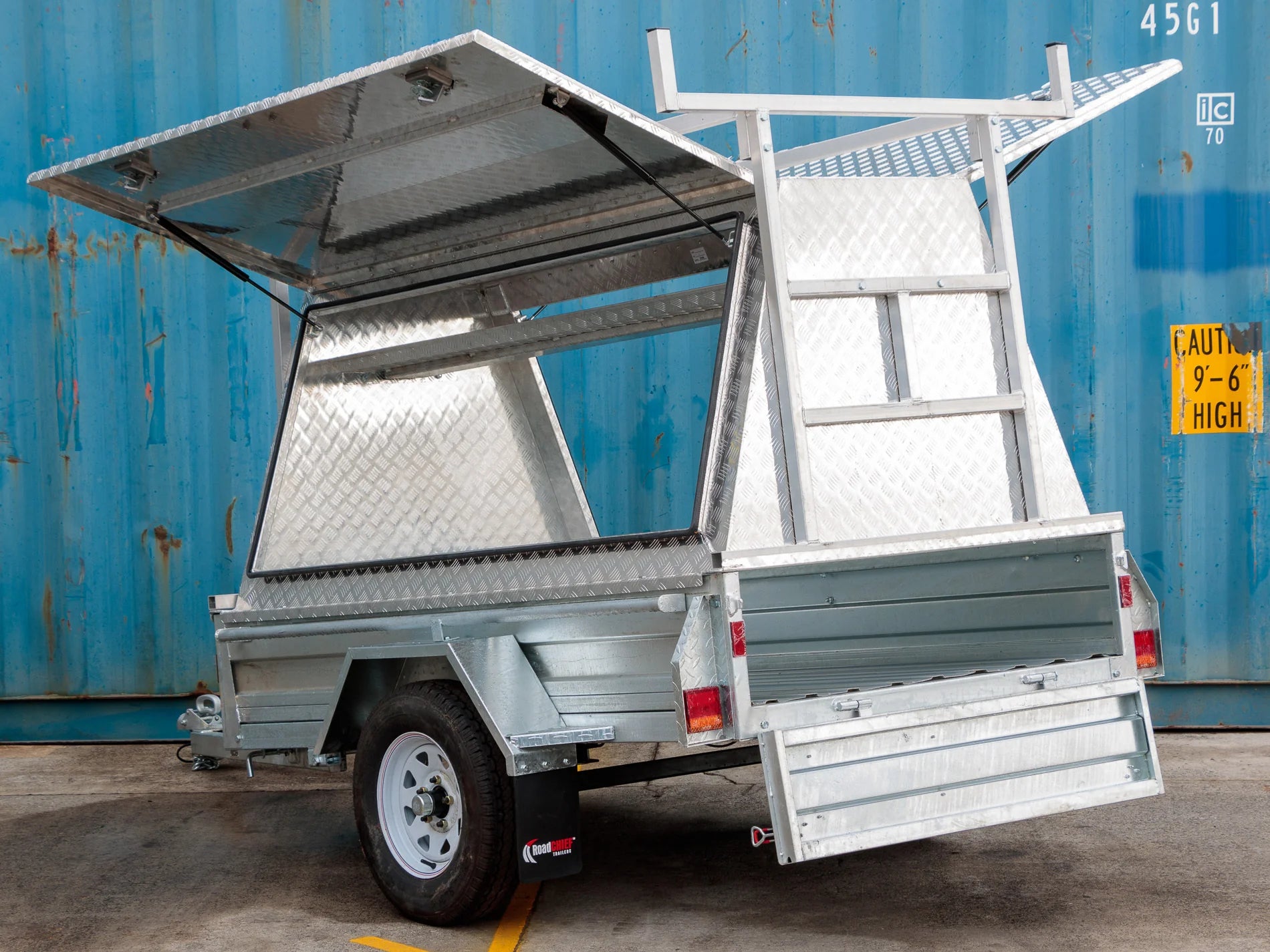

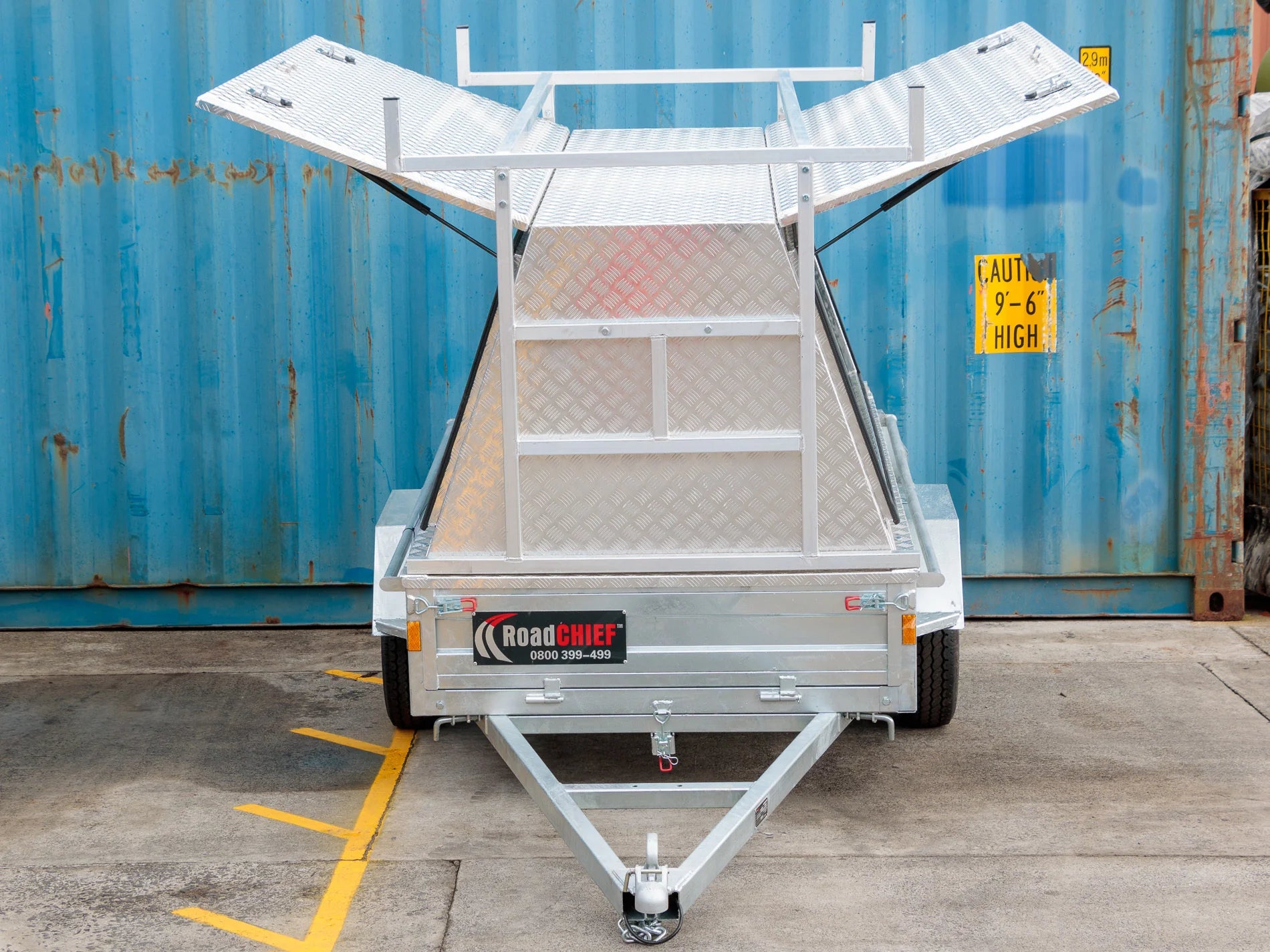

Opening Sides / Doors with Riveted Piano Style Hinges
2x Lockable Chrome Steel 'T' Latches on each Door
4x Hydraulic Gas Struts - 2 on each Door
BASIC DIMENSIONS (as standing at front of trailer):
Overall: 4110mm long x 2000mm wide x 2020mm high (including 'H' End Frames)
Trailer / Canopy Internal: 2400mm long x 1530mm wide (625mm wide at Top) x 1200mm high
Internal Shelf: 2400mm long x 500mm wide x 930mm high from base of canopy / 220mm high above shelf (170mm space between shelf edge & side wall)
Side Door Openings: 2200mm wide x 810mm high
Top Stow 'H' Ladder Storage Area: 2440mm long x 1260mm wide between upright posts
Overall with Side Doors Open: 2530mm wide

***Please note, front gate can't be folded down.



CODE: TR85BS (HOF) + TR85TT2
