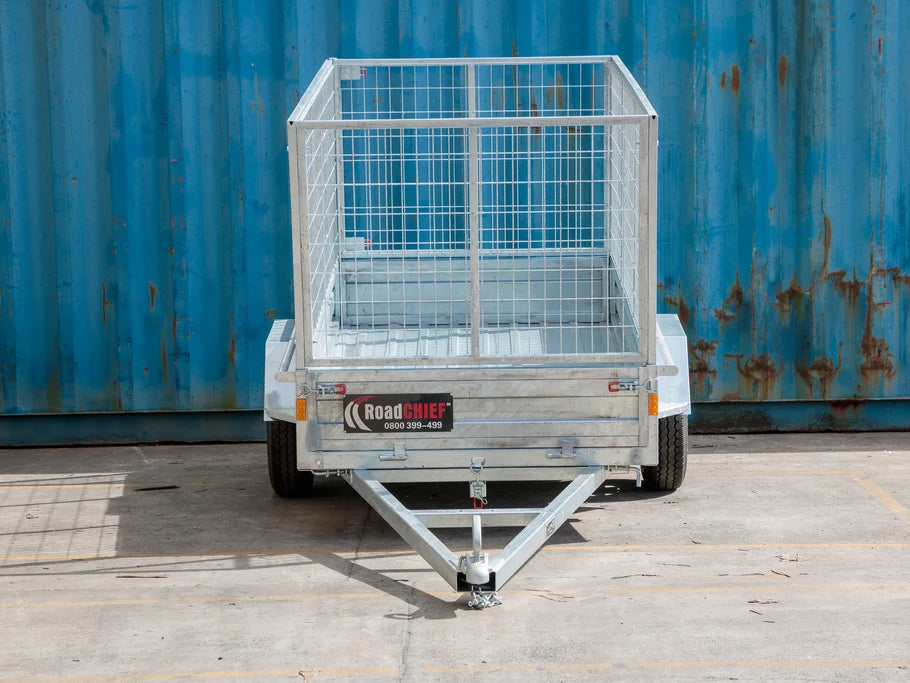

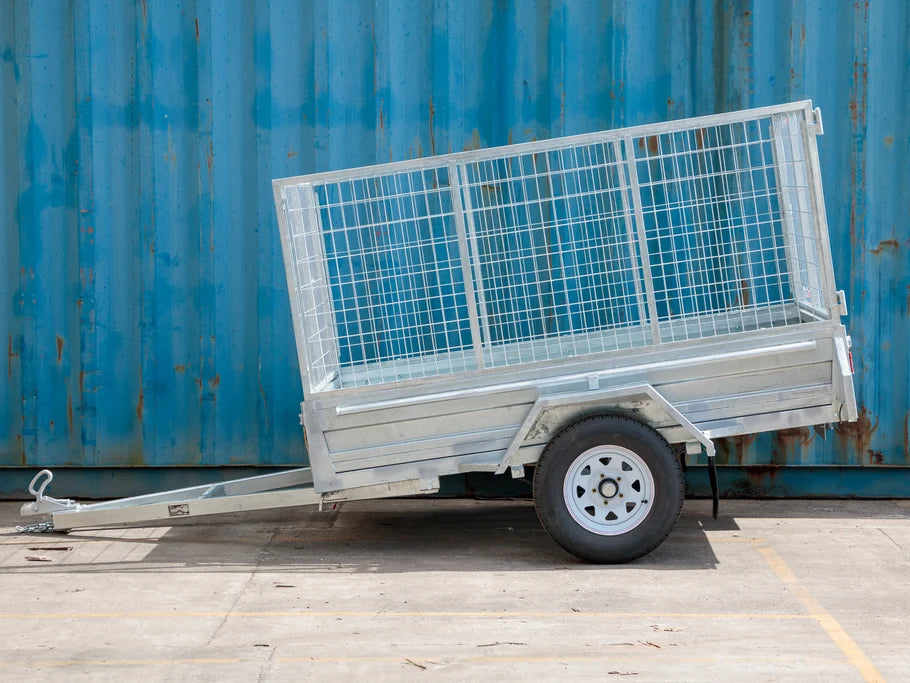

Trailer 8x5 Caged Tilting Deck with 900mm high Cage & Jockey Wheel

GALVANISED 8 x 5 Single Axle Caged Box Tilt Trailer with Jockey Wheel

ROADCHIEF



ASSEMBLED option:  $2,699.00

KITSET option:            $2,564.00

Tilting Tray
LED Lighting

Jockey Wheel

LOAD CAPACITY: 750kg
GTM: 1100kg


FEATURES:

Jockey Wheel with U-Bolt Kit
Galv Mud Guards
Removable Cage
Heavy Duty Draw Bar
Hinged Rear Cage Door
Tie Down Rails on each side
NZ Standard 7 Pin Flat Style Plug
NZ Style 1-7/8" Coupling and Safety Chain
Hot Dipped Galvanized Steel Construction
2x 13" Rims with 165R13C Tyres
5 Leaf Slipper Spring Suspension
Spare Wheel Holding Position on Drawbar (spare wheel not included)
Folding / Removable Front & Rear Tailgates
Galv. Floor with 50mm x 30mm Box Section Supports

Includes All Wiring and Lights required for WOF.


BASIC DIMENSIONS:
Ground to Top of Cage: 1690mm high
Ground to Top of Tray (no cage): 490mm
Internal Tray: 2400mm long x 1530mm wide
Cage: 2460mm long x 1600mm wide x 900mm high
Draw Bar: 1580mm long (70mm x 50mm Box Steel / 4mm Thickness)

CODE: TR85CS2 (TR85CS 2 - HOF)
CBM: 2.91 as a kitset
Overall: 4060mm long x 1980mm wide
